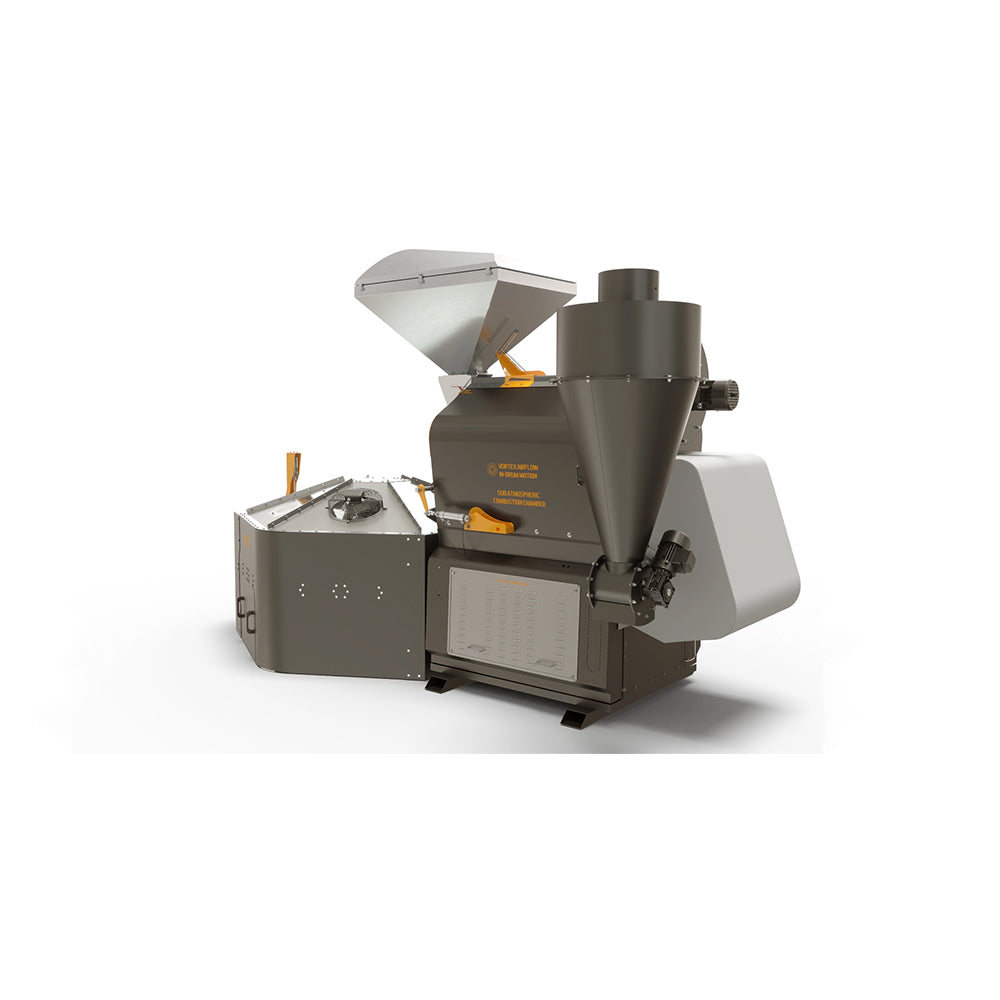

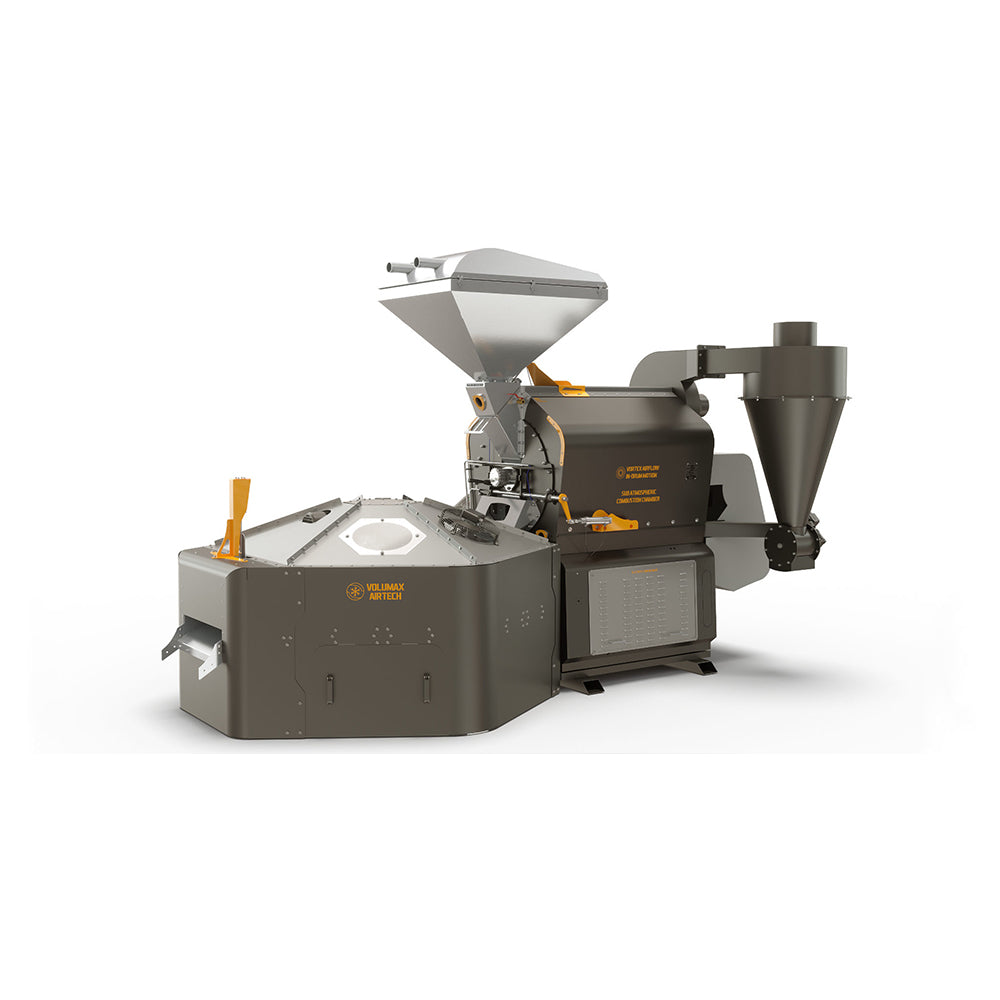

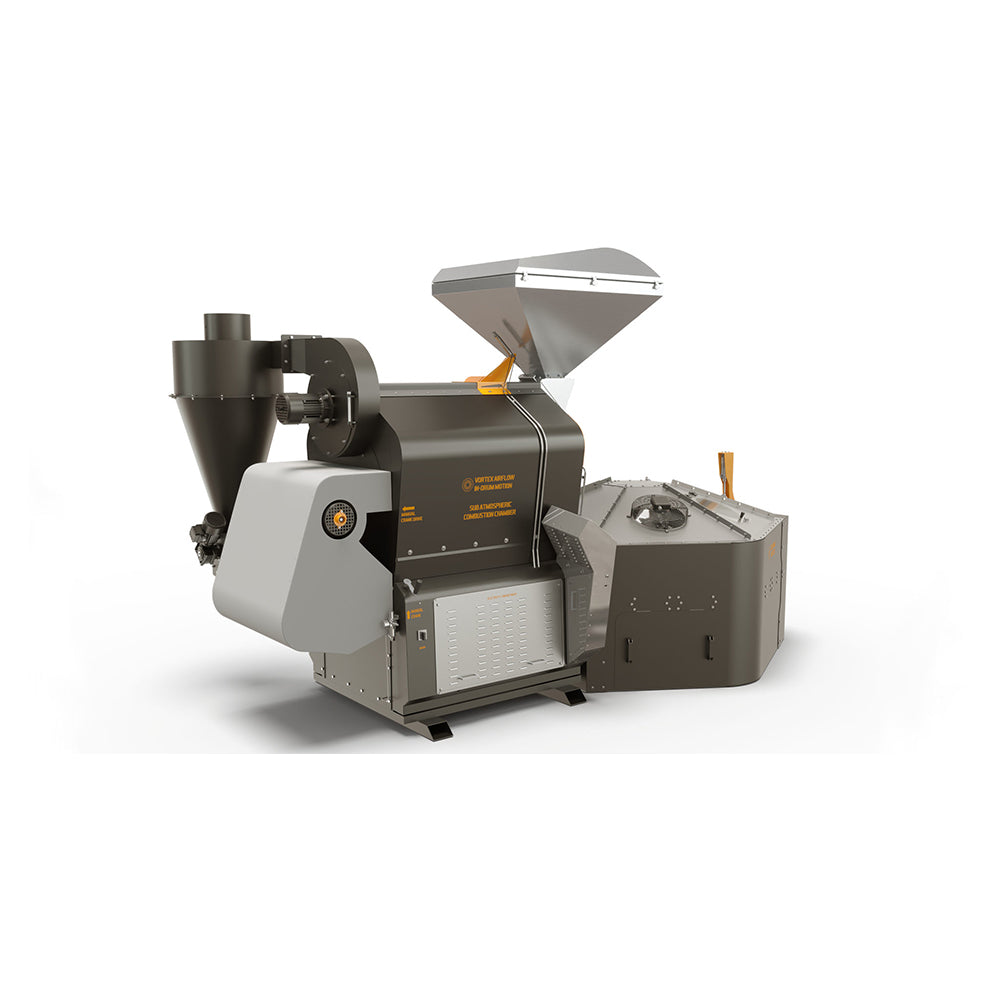

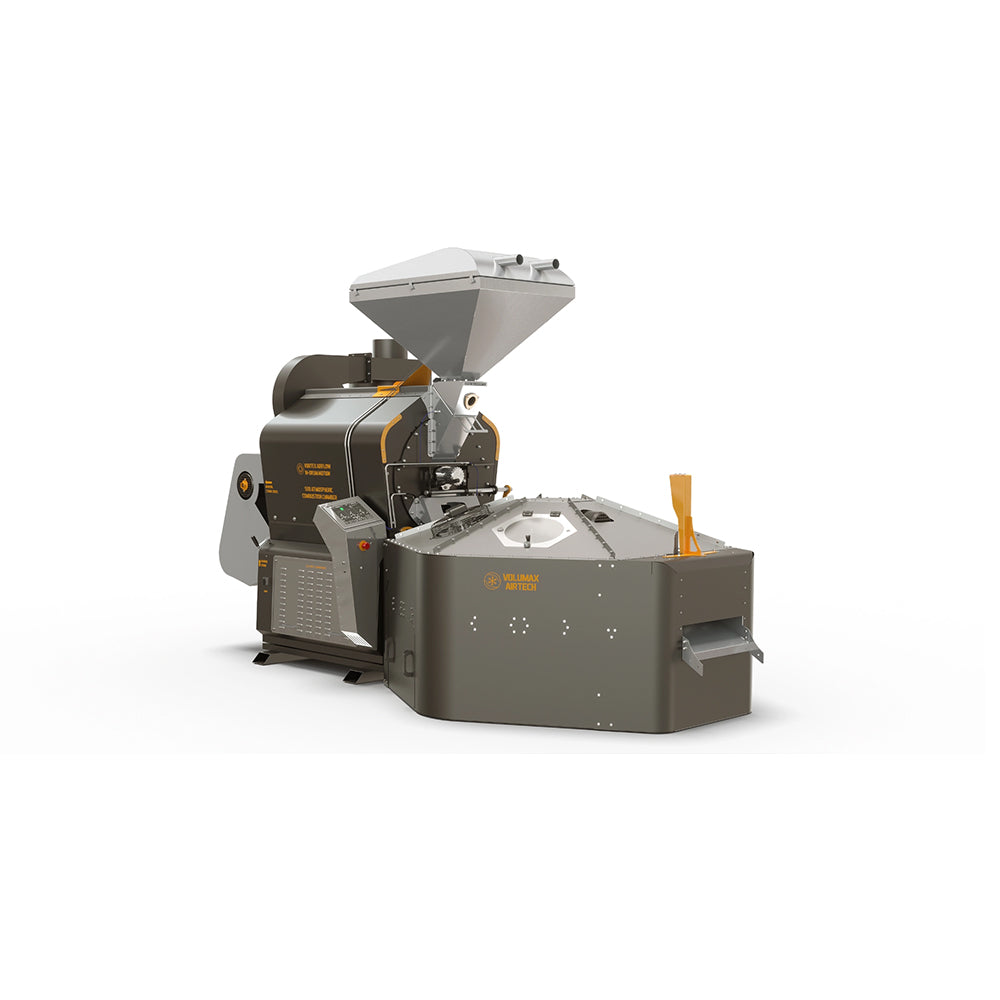

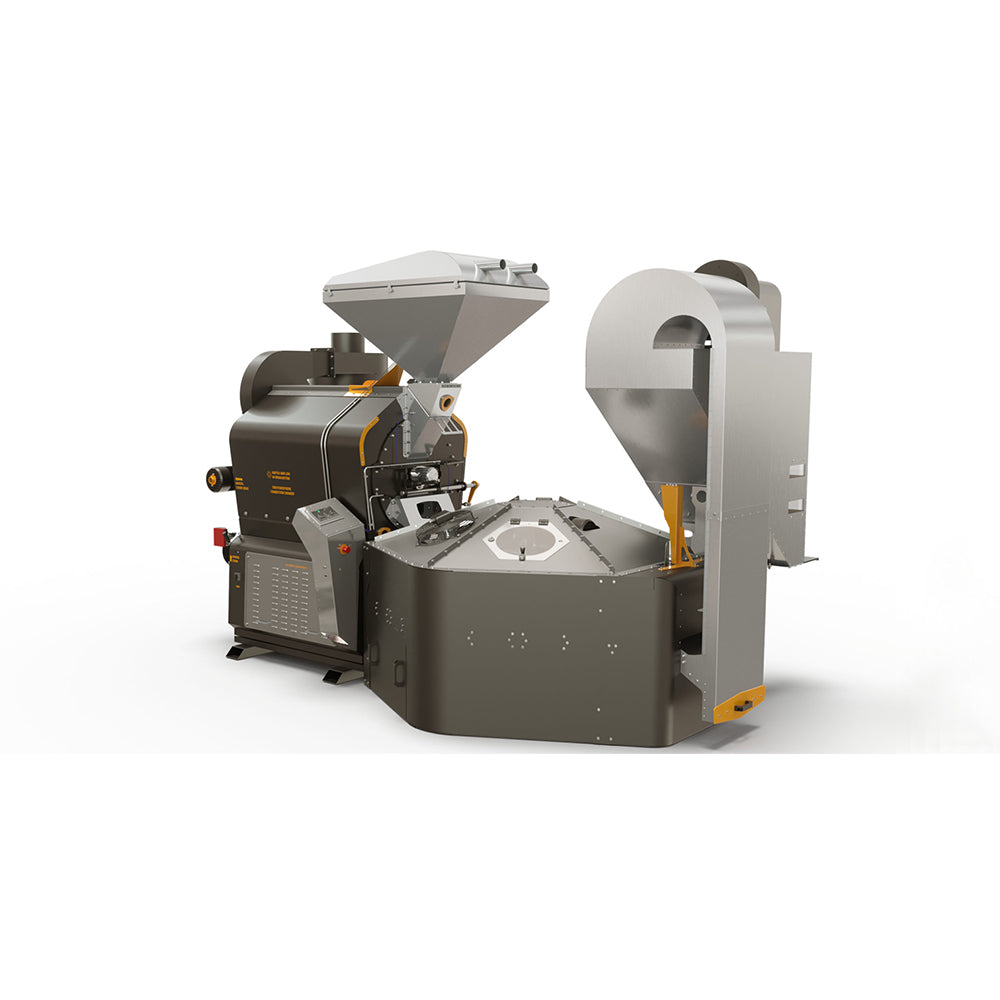

Ghibli R90 Commercial Roaster
Ghibli R90 Commercial Roaster
السعر العادي
Dhs. 785,500.00 AED
السعر العادي
سعر البيع
Dhs. 785,500.00 AED
سعر الوحدة
per
تعذر تحميل توفّر الاستلام
Batch Capacity: 30-90 kg (66-199 lbs.) of green coffee
Roasting Cycle: 17 minutes± 3 batches per hour
Quality and safety compliance: CE, RoHS, EMC
Heating Method: Gas: L.P.G. /Natural Gas, Burner power 40-120 kw (without Afterburner)
Drum Housing: Sub atmospheric combustion chamber
Cooling Agitation: Direct drive individual heavy-duty gear motor (1.5 hp)
Chaff Evacuation: Cyclone type chaff collector – chaff compacting device is optional
Drum Venting: High heat, individual blower with frequency inverter for speed control
Cooling Blower: High capacity (3 hp) cooling blower, cooling time is about 3-4 minutes
Electrical Specifications: 3 phase, 3x230V/3x110V, 11000W (including Loader, Destoner, and Afterburner)
Door Opening: All machine door openings are actuated pneumatically. Drum gate is hinged with oil free bearings
Drum Operation: Direct drive, individual, heavy-duty gear motor (1.5 hp) with frequency inverter for speed control
Body: Full fairing covered, low profile machine structure, with built in fork lift positioning tunnels. Complete precision metal work, top quality materials and hardware
Weight: 1500Kg (3305 lbs.)
Dimensions: 269(w) X 333(d) X 281(h)cm / 106(w) X 131(d) X 111(h) Inch
