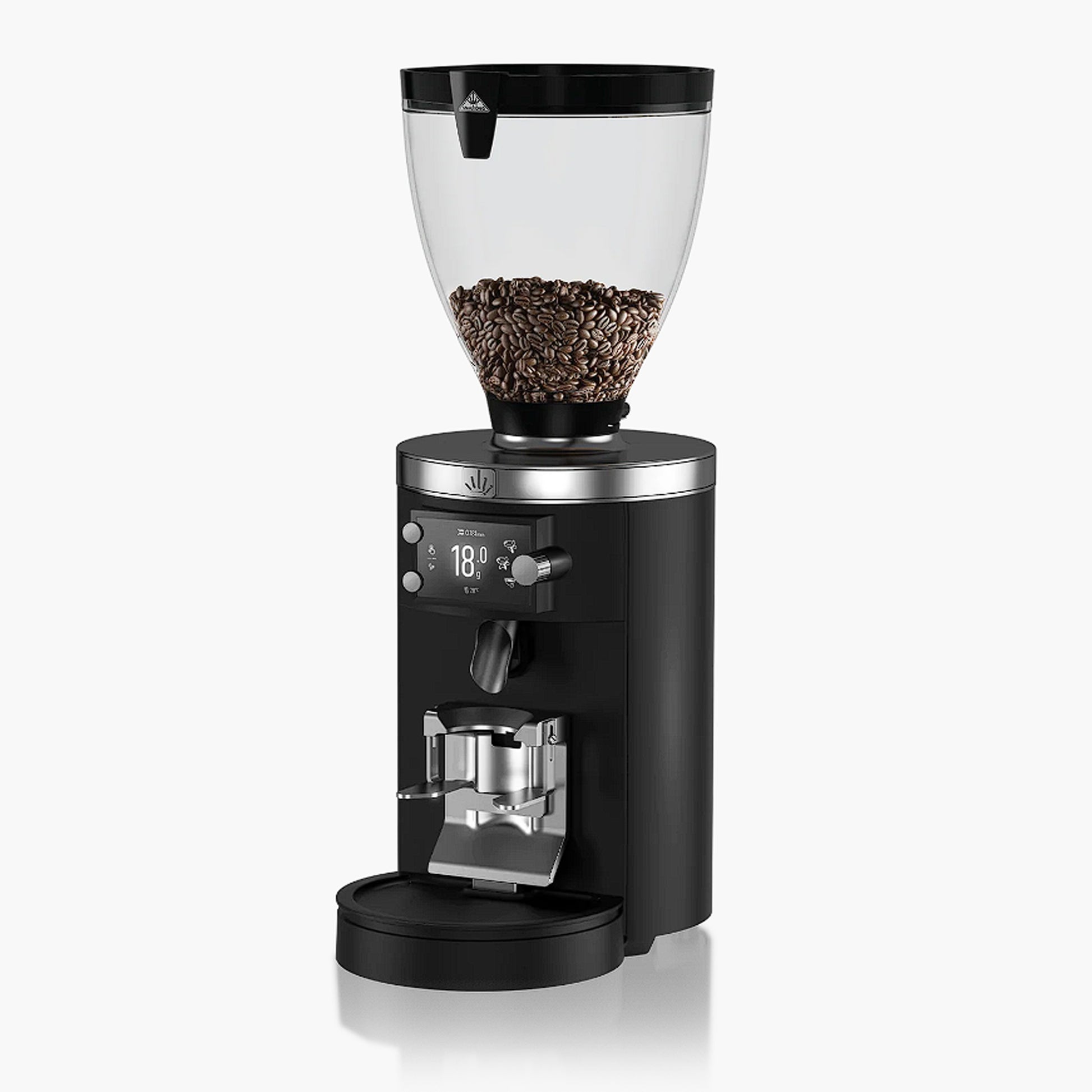

Mahlkoenig E80W Grind by Sync

The Future of Precision Espresso Grinding

The E80W Grind-by-Sync is our first espresso grinder featuring the groundbreaking technology of The Sync System. The E80W Grind-by-Sync is a significant evolution of the E80S Grind-by-Weight, showcasing remarkable new features and delivering the ultimate innovation in efficient workflows and consistent coffee quality. Designed to meet the demands of high-volume, busier environments, the E80W GbS 80mm burrs and active temperature control ensures both speed, consistency and unparalleled productivity for coffee professionals.

Equipped with cloud-enabled connectivity*, the E80W GbS offers an electrical adjustment of the burr distance. Baristas can manually adjust the grind size or leverage automatic synchronization with a compatible commercial espresso machine or Sync enabled device to achieve target extraction times effortlessly. Enhanced by an intelligent algorithm, the E80W GbS ensures fast, consistent and precise extraction – perfect for busy cafes where speed and reliability are crucial.

Features

• 80 mm diameter special steel burrs
• Powerful motor with active temperature control for high-speed performance
• Cloud enabled electronics to pair with an espresso machine via The Sync System
• Electrical adjustment of burr distance via small motor allowing for micro-adjustments
• Grind-by-Weight technology featuring a high-precision load cell for real-time dosing control during the grinding process
• Patented Disc Distance Detection (DDD) enabling accurate settings of the degree of fineness
• Time savings and quality assurance through integrated Portafilter Detection
• Adjustable illuminated spout providing a clean and centered coffee outlet
• Pleasantly quiet grinding
• High-resolution 88.3 mm display with a wide viewing angle
• The Sync System allows wireless communication between the grinder and the espresso machine to ensure every espresso shot is of unparalleled quality, reproducible across multiple locations, and by anyone operating the equipment.

Technical Specifications

Voltage // frequencies // phases // nominal power:

• 220-240 V // 50/60 Hz // 1~ // 520/600 W
• 110-127 V // 60 Hz // 1~ // 845 W
• 100 V // 50/60 Hz // 1~ // 620/780 W

Idle speed: 1400 rpm (50 Hz); 1700 rpm (60 Hz)

Burr& diameter: 80 mm

Burr& material: Special steel

Burr grind life (median setting): ca. 1.500 kg

Average grinding capacity*:

• 50 Hz: 6-7 g/s @ 250 µm
• 60 Hz: 7-8 g/s @ 250 µm

Bean hopper capacity: approx. 1800 g

Dimensions (w x h x d): 24 x 63 x 34 cm

Dimensions of packing (w x h x d): 69.7 x 28.7 x 47.5 cm

Net weight: 18.0 kg

Gross weight: 19.8 kg

Certifications: CE, CB, ETL Safety, ETL Sanitation

Standards:

Conforms to:

• IEC/EN 60335-1
• IEC/EN 60335-2-64

Certified to:

• UL 763
• CSA C22.2 No. 195
• NSF/ANSI 8

Optional accessories:

• • Bean hopper approx. 250 g
  • Bean hopper approx. 1200 g
  • 80 mm premium cast steel burrs
  • Burr replacement tool
  • Calibration weight 1 kg
  • CB-certified aluminum adapter for Cans
