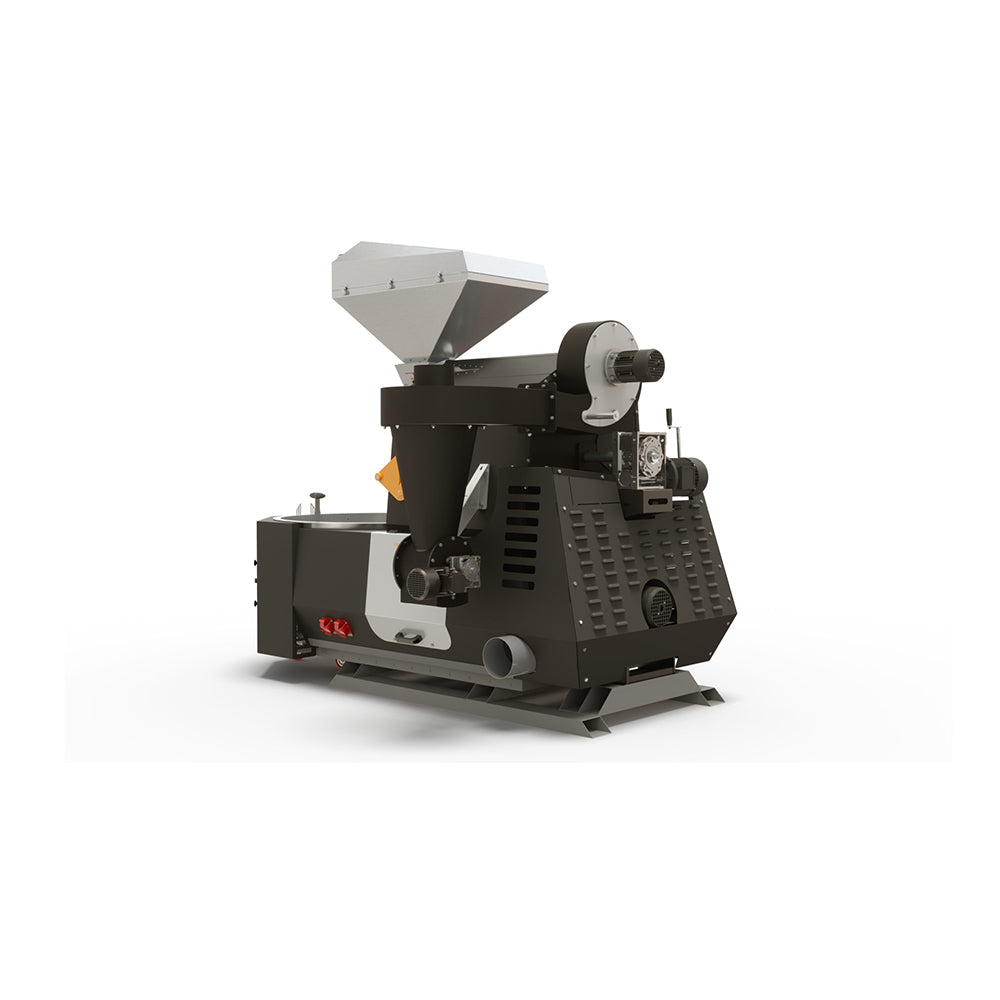

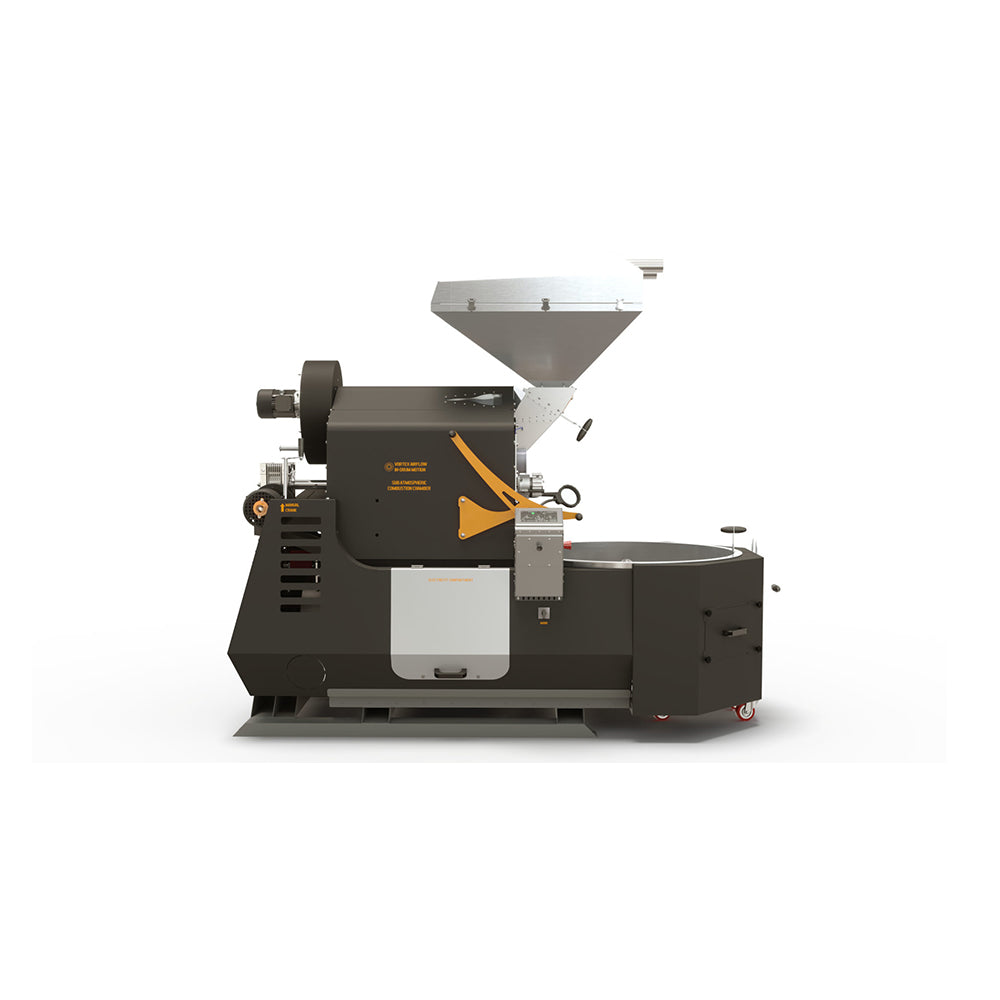

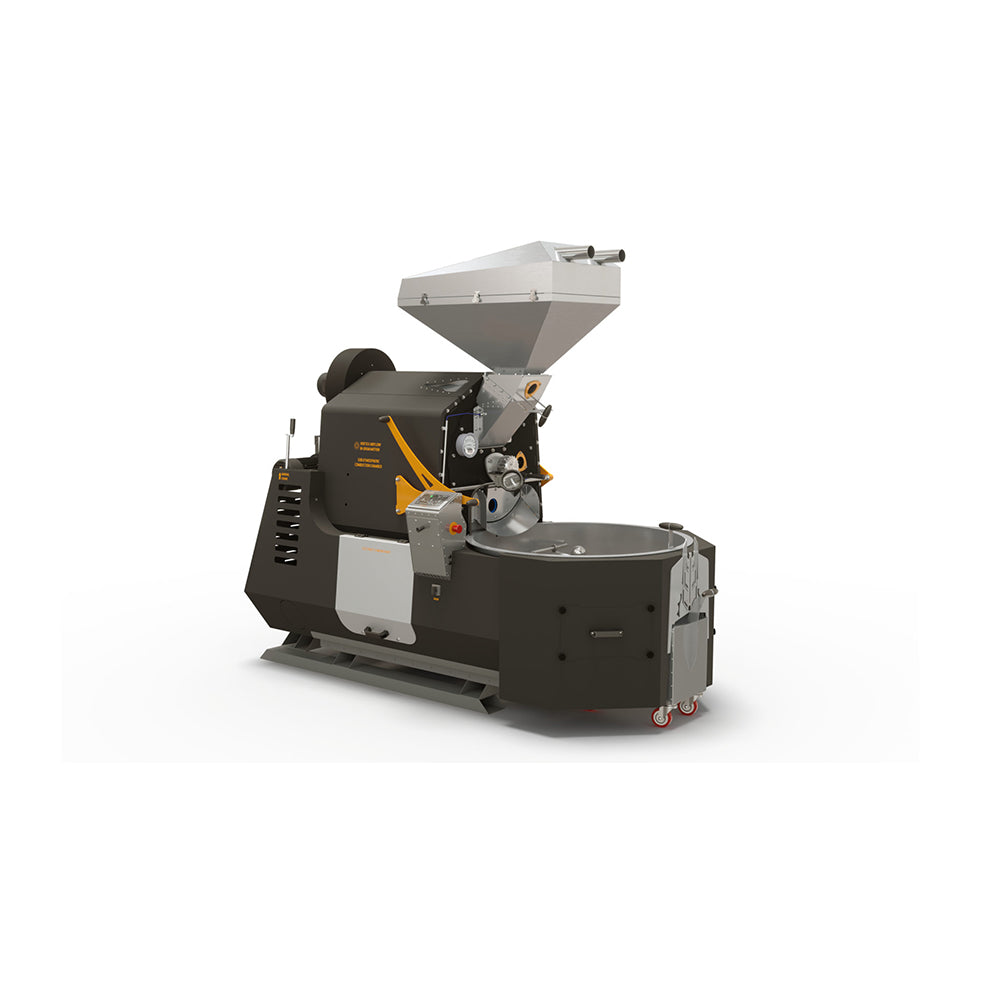

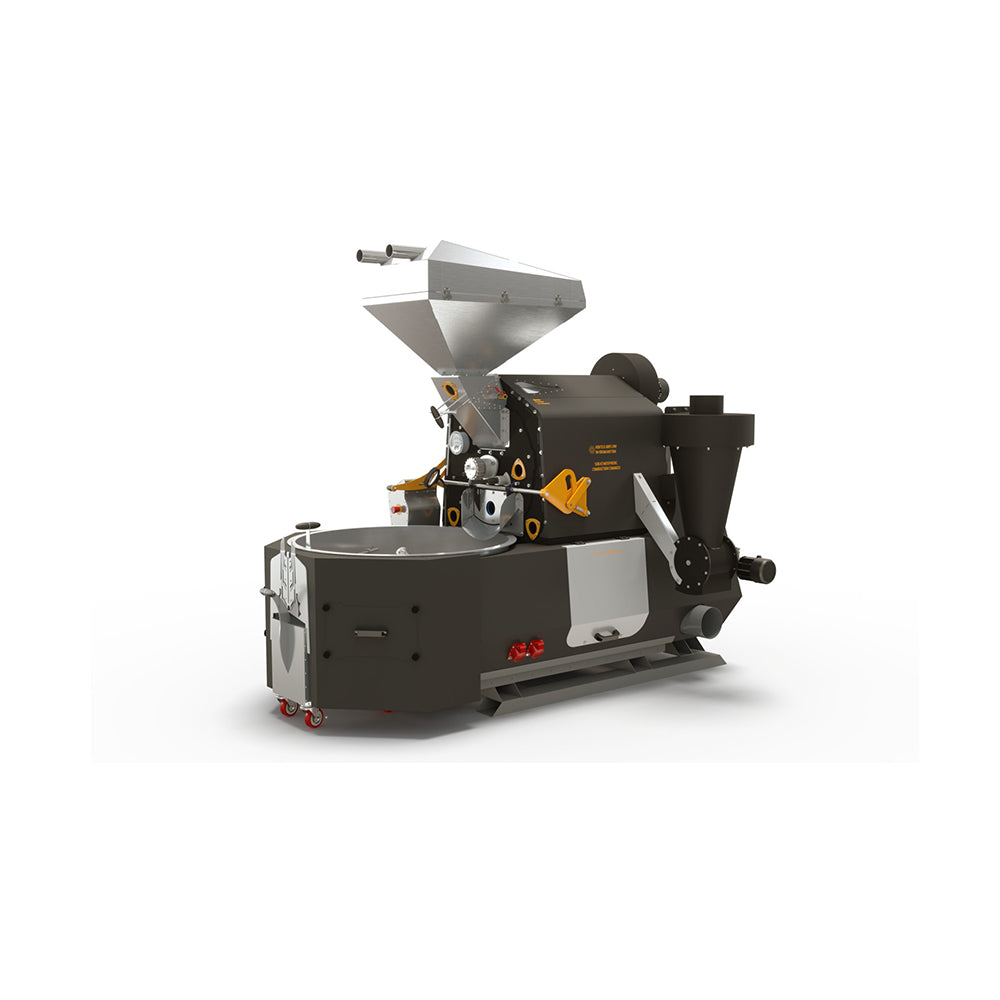

Ghibli R30 Commercial Roaster

• Batch Capacity: 7-30 kg (15-66 lbs.) of green coffee
• Roasting Cycle: 16 minutes ±4 batches per hour
• Quality and safety compliance: CE, RoHS, EMC
• Drum Housing: Sub atmospheric combustion chamber
• Drum Operation: Direct drive, individual, heavy-duty gear motor (1.5hp), with frequency inverter for speed control
• Chaff Evacuation: Cyclone type chaff collector- chaff compacting device is optional
• Electrical Specifications: 50/60 Hz, 3 phase 3x230V/3x110V, 9000W
• Body: Full fairing covered, low profile machine structure, with built in fork lift positioning tunnels. Complete precision metal work, top quality materials and hardware
• Cooling Agitation: Direct drive individual heavy-duty gear motor (1 hp)
• Drum Venting: High heat individual blower, (1 hp) with frequency inverter for speed control, and an easy hanging bracket for periodical blower cleaning
• Cooling Blower: High capacity (1.5 hp) cooling blower, cooling time depends on other external conditions
• Door Openings: All machine door openings are actuated manually, pneumatic operation is optional. Drum gate is hinged with oil free bearings
• Heating Method: Gas: L.P.G. / Natural Gas (30-90 kw)

Also Available:

– Wood/charcoal heating conversion
– Integrated, automatic roast profiling system
– pneumatic doors

• Dimensions: 157(w) X 237(d) X 209(h) cm / 62(w) X 93(d) X 82(h) Inch
• Weight: 900 kg (1984 lbs.)
